High Sieving Efficiency Linear Vibrating Screen Low Noise 20-100T Per hour

Thanks for your kindly hospitality. Your company is very professional , we will have nice cooperation in the near future.

—— Audrey Vespe

In the process of production and before shipment, every one of our products are very strict professional testing to ensure the optimal quality of the product.

—— Andrew

I'm Online Chat Now

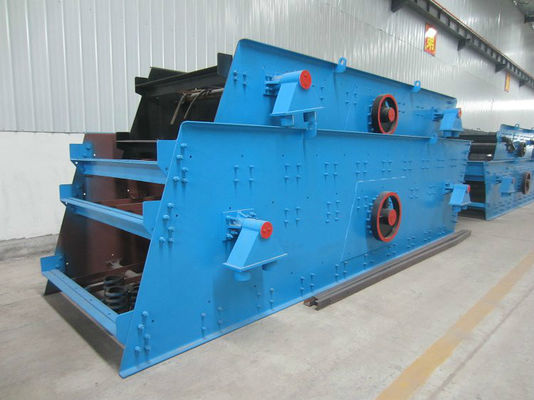

High Sieving Efficiency Linear Vibrating Screen Low Noise 20-100T Per hour

High Sieving Efficiency Linear Vibrating Screen Low Noise 20-100T Per hour
High Sieving Efficiency Linear Vibrating Screen Low Noise 20-100T Per hour

Large Image :  High Sieving Efficiency Linear Vibrating Screen Low Noise 20-100T Per hour

Product Details:

Place of Origin: China
Brand Name: HK
Certification: ISO CE
Model Number: 1100

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: NUDE
Delivery Time: 30 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 SET PER YEAR
Detailed Product Description
Price: Negotiable Production Line: Tailored
Sieving Hole: Tailored Sieving Layer: Tailored
Layer: 3 Output: 20-100T Per Hour
High Light:

mining vibrating screen


linear vibratory screen


Tailored Linear Vibrating Screen

High Sieving Efficiency And Low Vibration Noise 20T/H Vibrating Screen:


      The vibration screen trajectory movement of the circular elliptical. It is a multi-layer, high-efficiency new type vibrating screen designed specifically for quarry screening stones. Widely used in mining, coal, smelting, building materials, refractories, light industry, chemical and Other industries of product classification.


Main features of Vibrating Screen:

1) Stable performance and high screening efficiency
The circular vibrating screen follows the structural design of the classic screening equipment, and its performance is fully guaranteed
2) A variety of screens to choose from
To meet the requirements of various classification operations after coarse crushing and medium crushing in the crushing process, we have configured a variety of screens for the circular vibrating screen. So that we can meet different production needs through simple screen replacement operations.

3) The whole disassembly and assembly of the vibrator is convenient for maintenance and replacement, which greatly shortens the maintenance period. (It takes only 1 to 2 hours to change the vibrator).
(4) The side plate of the sieve machine adopts the whole plate cold work, no welding, high strength and long service life. The connection between the beam and the side plate is connected by torsion-cutting high-strength bolts, without welding, and the beam is easy to replace.
(5) The sieve machine adopts rubber spring to reduce vibration, and has the advantages of low noise, long service life, stable over-common vibration zone and small dynamic load of each branch of the sieve machine.
(6) The motor and the exciter are connected by a flexible coupling, which has the advantages of long service life and small impact on the motor. [2]
Common areas

Working Principle of vibrating screen:

     The vibrating screen machine produced by the Nile mainly consists of a screen box, a screen, a vibrator, a vibration absorber spring device, a chassis and so on. The vibrator is installed on the side plate of the screen box, and the motor The side plate of the screen machine is made of high quality steel plate, and the side plate is connected with the beam and the base of the exciter With high strength bolts or rivets of ring groove. The vibrator is mounted on the side plate of the screen box and rotated by the motor through the coupling to produce centrifugal inertia force, forcing the screen to vibrate.


Pre-Sale Service:
1.Professinal Technical consultation 24-hour onlineservice
2.Free designing, choosing suitable equipment for you.
3.Hot-selling products, finished machine in stock, Shorten the leadtime and let the goods reach you earlier


After-Sale Service:
1.Continuous technical support to help you solve technical problems encountered during installation and commissioning
2.1 year warranty of whole machine, the host damage is directly replaced by a new machine for free!


      The circular vibrating screen utilizes a motor external mopping vibrator to make the screen body reciprocally vibrate in the direction of the exciting force, and the material is circularly moved on the screen surface to achieve the purpose of screening. It consists of vibration source, sieve body, screen mesh, vibration damping device, base, etc. It has reasonable structure and is durable.

      The circular vibrating screen mainly comprises a sieve box, a screen mesh, a vibrator, a vibration-damping spring device, a chassis, a suspension (or support) device and an electric motor. The circular vibrating screen structure is composed of a spring support group, a transmission device, a sieve box, a support base, a thin oil lubrication vibrator and the like.

vibrating screen

vibrating screen
