Multi Layer Linear Vibrating Screen , Linear Vibratory Screen Higher Efficiency

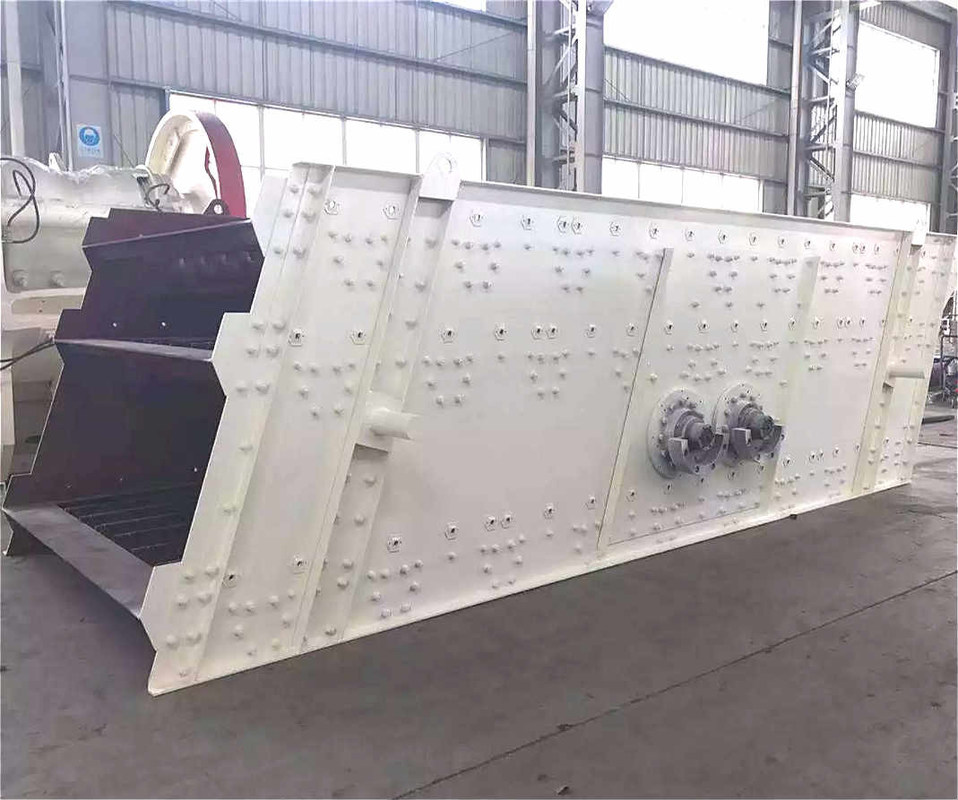

Large Image :  Multi Layer Linear Vibrating Screen , Linear Vibratory Screen Higher Efficiency

Product Details:

Place of Origin: China
Brand Name: HK
Certification: ISO CE
Model Number: 1100

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: NUDE
Delivery Time: 30 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 SET PER YEAR
Detailed Product Description
Price: Negotiable Production Line: Tailored
Sieving Hole: Tailored Sieving Layer: Tailored
Layer: 2 Or 3 Or 4 Output: 20-100T Per Hour
High Light:

high frequency vibrating screen


linear vibratory screen


Multi Layer Linear Vibrating Screen

Multi-Layer And Higher Efficiency Vibrating Screen With Stable Performance

    Vibrating screen is a new type of vibrating screen with circularvibration, multi-layer number and high ffciency. Our vibrating screen adopts cylinder eccentric shaft vibrator and partial block to adjust the amplitude. The screen has long flowing line and many size, It has the characteristics of reliable structure, strong exciting force, high screening efficiency, low noise, dur ability, convenient maintenance and safety. The vibrating screen is widely used in the product classification of mining, building materials, energy, chemical industry, transportation and other industries.


Performance of Vibrating Screen


1. The circular vibrating screen is made of spring steel woven screen or perforated screen plate, which has long service life, strong vibration of screen box and is not easy blocked.
2. New structure, advanced technical parameters, large processing capacity and high screening efficiency.
3. The circular vibrating screen cylinder eccentric shaft vibrator and eccentric block to adjust the amplitude, which is convenient for maintenance.
4. The circular vibrating screen can running long-term and high efficiency, which not only saves the cost of operation, but also improves the capacity.


      The vibrating screen adopts a disc type coupling with simple structure and easy manufacturing and maintenance, which overcomes the defects of universal coupling. The vibrator adopts a block eccentric structure, which is simple in structure. It can be equipped with a feeding box. The application of the feeding box increases the effective screening area of the vibrating screen, and prolongs the service life of the screen at the feeding end at the same time. The transmission part increases the intermediate transition bearing seat, which passes through the middle. The application of ferry bearing seat effectively protects the motor and prolongs its service life. The motor is installed on the left side of the screen frame, or on the right side of the screen frame. This series of screen machine is seat mounted. The adjustment of screen inclination angle can be realized by changing the position height of spring support.


     Transmission: the vibrating screen usually uses a V-belt transmission device. The structure of the vibrating screen is simple. The number of revolutions of the vibrator can be selected arbitrarily, but the belt is easy to slip during operation, which may cause the screen holes to be blocked. The vibrating screen is also directly driven by a coupling. Couplings can maintain a stable number of revolutions of the vibrator and have a long service life, but it is difficult to adjust the number of revolutions of the vibrator.


vibrating feeder

vibrating feeder
