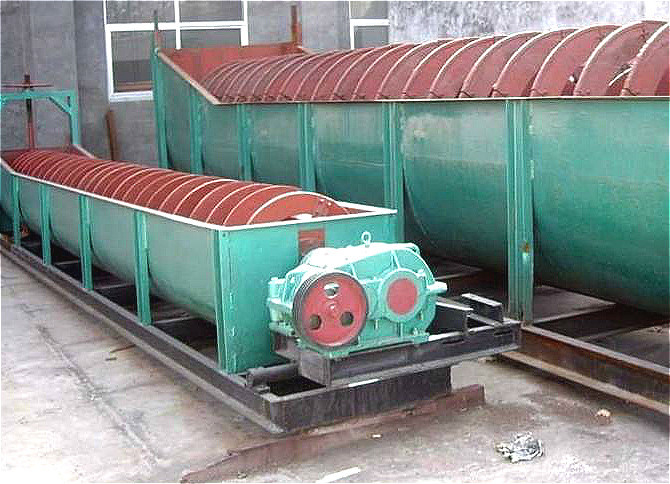

Mineral, Sand and Gold Spiral Classifier Machine for Washing and Classifying



    Spiral classifier is the most commonly used classifying equipment nowadays. It classifies the minerals by taking advantage of the different settling velocity of mineral particles with different size, shape, and density. Spiral classifiers are widely used for separation plant. They can be combined with ball mill to form a closed circuit for preliminary classification and check classification, sometimes they can be applied for ore washing, de-sliming and de-watering as well.



     There are high-wearable type single and double spiral classifier, and immersed type single and double spiral classifier, standard and extended type spiral classifier. The ground pulp is fed into tank from the inlet in the middle of settlement region, and the slurry classification sedimentation area is under the inclined tank. The spiral with low speed rotation stirs the slurry, so that the fine particles rise and overflow, while the coarse particles sink to the bottom of tank and are pushed upward by the spiral.





Spiral Classification---the spiral of overflow end is completely immersed below liquid level
Spiral Classifier —Product improvement: an automatic elevating apparatus is added to the discharge opening. The scoop in ball mill is eliminated bringing more stable operation.Fine ore pulps are fed into water tank through feeding opening located in the center of settling zone. Beneath the inclined water tank is the ore pulp classification zone where ore pulps are stirred by low-speeded impellers. Fine ore particles are lifted up and then spilled out the overflow opening; coarse ore particles precipitate down to tank bottom and are discharged via discharge opening.



Spiral Classifier Features:



1. Low power cosumption;
2. Heavy duty, long workinglife;
3. Powerful self-contained spiral lifting device;
4. Continuous spiral raking;
5. High classifying efficiency;
6. Wide choice of weir height;
7. Rigid tank and substructure;
8. Wide choice of tank design;
9. Wide range of industries serviced.



    The spiral classifier is mainly composed of a transmission device, a spiral body, a trough body, a lifting mechanism, a lower support (bearing bush) and an exhaust valve.



     The water tank of this machine is installed at an inclined angle. The inclination angle is determined according to the equipment configuration in the process. The transmission device drives the screw to rotate in the tank. The finely ground slurry enters the tank from the side feed inlet and forms a groove at the lower end of the tank. The surface area and volume of the slurry subsidence area are determined by the inclination of the sink and the height of the overflow weir. The low-speed rotating spiral can play a certain stirring effect. After the slurry is stirred, the light and fine particles are suspended on the top to form an overflow, which overflows from the overflow weir at the end of the water tank and flows into the next beneficiation process; the coarse particles sink to the bottom of the tank to form Sand is transported by spiral to the ore discharge outlet.



Technical Data of Spiral Classifier:



Type Model Spiral diameter
(mm)
Rotation speed
(r/min)
Tank slope(°) Capacity(t/d) Power
(kw)

Lifting motor power

(kw)

Weight

(t)

overflow Returned sand

High

weir

HK7.5 Φ750 4.5-10 12-18 115 399 3 manual 3
HK10 Φ1000 4.3-7.4 12-18 160-260 400-700 4.5 manual 4.8
HK12 Φ1200 4-8 12-18 200 1382-2765 5.5 2.2 8.9
2HK12 Φ1200 4-8 12-18 350 2340-3180 5.5×2 2.2×2 16.2
HK15 Φ1500 2.5-6 12-18 230 1120-2680 11 2.2 12.2
2HK15 Φ1500 2.5-6 12-18 500-550 3000-5000 11×2 2.2×2 21.6
HK20 Φ2000 3.5-5 12-18 650 3700-5940 15 2.2 20.6
2HK20 Φ2000 3.5-5 12-18 1200 7780-11880 15×2 2.2×2 37
HK24 Φ2400 3.6 12-18 500 4000-8000 15 3 26
2HK24 Φ2400 3.6 12-18 1000 8000-1600 15×2 3×2 46.5
2HK30 Φ3000 3.2 12-18 1785 23300 45 4×2 73.03
submerged HK75 Φ750 4.5-10 12-18 40 200-445 3 manual 3.8
HK10 Φ1000 5.5 12-18 110 675-1080 5.5 manual 5.6
HK12 Φ1200 5-7 12-18 114 1166-1633 7.5 2.2 12
2HK12 Φ1000 5-7 12-18 200 1700-2800 7.5×2 1.5×2 19.87
HK15 Φ1500 2.5-6 12-18 185 1140-2740 11 2.2 15.8
2HK15 Φ1500 2.5-6 12-18 320 2290-5480 11×2 1.5×2 27.5
HK20 Φ2000 3.5-5 12-18 320 3210-5940 15 2.2 29
2HK20 Φ2000 3.5-5 12-18 600 7780-11880 15×2 2.2×2 50
HK24 Φ2400 3.6 12-18 400 3900-7200 18.5 3 37.5
2HK24 Φ2400 3.6 12-18 1000 13600 30×2 3×2 65.5
2HK30 Φ3000 3.2 12-18 1410 23300 45 4×2 73.03
