Ultrafine Powder Coating Production Equipment , Powder Coated Machine 500-2000 KG/H

small.img.alt small.img.alt

Large Image :  Ultrafine Powder Coating Production Equipment , Powder Coated Machine 500-2000 KG/H

Product Details:

Place of Origin: China
Brand Name: HK
Certification: ISO
Model Number: 600

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: nude and plywood box
Delivery Time: 30 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 Set per year
Detailed Product Description
Power: 55kw Spindle Speed: 4500r/min
Capacity: 500-2000KG/H Blower Power: 5.5KW
High Light:

powder coating production equipment


powder coating equipment

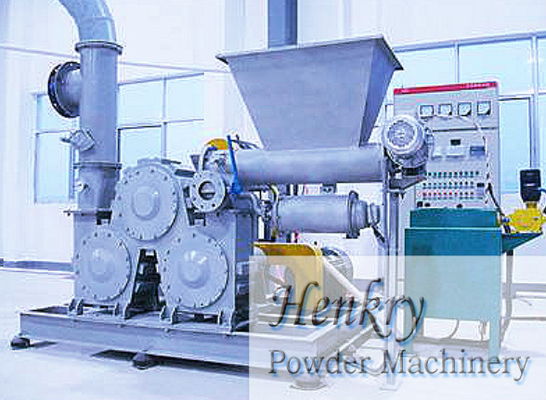

Ultrafine Powder Coating Machine with Higher Coated Rate



   The reason why we use ultrafine powder coating machine to modify ultrafine powder:

    Because of the extremely small diameter of the ultrafine powder and higher surface properties, it is easy for them to agglomerate and form new particles. So the surface area and volume effect cannot be made full use. The advantages of ultrafine powder had lost because of the reunion effect. To solve reunion and improve dispersion and fluidity properties, it is very efficient to use powder modification method. In this way, it can increase the repulsion between powder particles, reduce the gravity between the powder particles, make it easy to disperse, and improve the application performance of the powder


     Ultrafine powder coating machine can bring the following advantages: good dispersion of powder and modifier, better powder modified rate, low labor intensity, higher productivity and suitable for large-scale production. The ultrafine powder coating machine is often installed with ultrafine powder mil for producing coated ultrafine inorganic powder, especially for plastics, polymer-based composite materials such as rubber, agglomerates, painting, inks, organic fillers and pigments.

     There is a combination of shear, collision, air vortex and friction in the ultrafine powder coating machine chamber, which can disperse the powder and increase collision between powder and modifier. The mixing time of powder and modifier can be increased by the air vortex. And the temperature can be kept at a suitable degree with the help of collision between powder and modifier.

Advanced artificial intelligence technology is used to adjust all process parameters and modifier&powder feeding-rate. This can help to achieve the absorption of modifier to powder surface and stabilize the modified powder quality.


     Special features of ultrafine powder coating machine:

     No-stop feeding and powder modification; better dispersing function; higher modification rate, same force for powder and modification; modification time and temperature can be adjusted; lower power consumption; automatic control for easy operation; no powder pollution and environment-friendly; higher output, 325-6000mesh modification.


    This equipment consists of 1. powder feeding device 2. modifier metering device 3. Spraying device 4. main coating machine 5. blower 6. pulse-jet collector 7.electric control cabinet

    The purpose of ultrafine powder surface modification includes 1) improving the dispersibility of powder particles; (2) improving the durability, such as drug resistance, light resistance, heat resistance, weather resistance, etc.; (3) improving the surface activity of particles; (4) making The particle surface produces new physical, chemical and mechanical properties and new functions, thereby increasing the added value of the powder.



    Technical Data of Ultrafine Powder Coating Machine:

Technical Data


Main Machine Power(KW) Spindle Speed(R/Min)



Blower Power(KW)

Dusting Area


300 55.5 4500 500-2000 5.5 60
600 111 2700 1500-3500 22 150
900 225 2000 3000-7500 45 300

ultrafine powder coating machine
