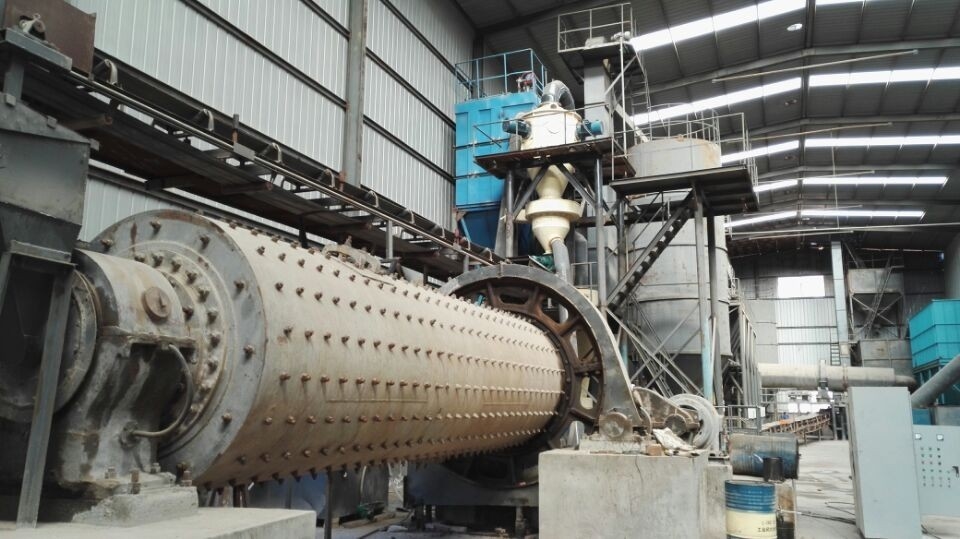

300 - 2500 Mesh Ultrafine Ball Grinding Mill With Advanced Classifying System

300 - 2500 Mesh Ultrafine Ball Grinding Mill With Advanced Classifying System
300 - 2500 Mesh Ultrafine Ball Grinding Mill With Advanced Classifying System

Large Image :  300 - 2500 Mesh Ultrafine Ball Grinding Mill With Advanced Classifying System

Product Details:

Place of Origin: China
Brand Name: HK
Certification: ISO CE
Model Number: 2100

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 30000-150000USD
Packaging Details: nude and plywood
Delivery Time: 45-60 working days
Payment Terms: T/T, L/C
Supply Ability: 1000 sets per year
Detailed Product Description
Output: 1-30T/H Classifier: 3 Or 5 Motor
Fineness: 300-2500 Mesh Grinding Media: Tailed Made
Power: 120KW-800KW Delivery Time: 45-60 Working Days
High Light:

Ultrafine Ball Grinding Mill

,

2500 Mesh Ball Grinding Mill

,

300 Mesh Ultrafine Grinding Mill

Ultrafine Ball Grinding Mill with Advanced Classifying System with 300 to 2500 Mesh





The ultrafine ball grinding mill system is composed of ball mill and advanced classifier. The internal structure of ball mill can be tailor-made for various mineral stone grinding. The specially designed classifier has large processing capacity, lower energy consumption and high classification accuracy. The ultrafine ball grinding mill can produce 300 to 2500 mesh powder, and 2um D50 can also be guaranteed.



Working Principle of Ultrafine Ball Grinding Mill:



The raw material is crushed by the jaw crusher or hammer crusher, and then conveyed to the ultrafine ball grinding mill. The ball grinding mill rotates with the help of reducer and motor. And the grinding ball or grinding media also moves up and down in the ball grinding mill. The raw material is crushed and ground between the grinding ball or grinding media.

The advanced classifier separate the fine powder from the coarse powder. Qualified fine powder is collected in the pulse-jet collector. The coarse particles are re-entered into the ball mill from the lower end of the classifier for re-grinding, and the purified air is discharged by the draft fan.



Performance Advantages of Ultrafine Ball Grinding Mill:



1. Power-saving technology and classification accuracy compared with other ball mill classification production lines.

2. The one-time classification fineness can be adjusted from 300 to 2500 meshes, and second classifier system is added. After the second classification, the fineness can reach d97≤2um (6250 meshes).

3. High classification accuracy and accurate cutting point; large processing capacity, the maximum single processing capacity of LHB series classifiers can reach 100t / h; energy consumption Low, the same processing capacity, energy consumption is only 40% of other classifiers; classification efficiency is high, the same processing volume, fine powder extraction rate is increased by 50% compared with other classifiers.

4. Crushing efficiency is greatly improved, and the grinding media ratio is scientific, which can effectively produce higher output.

5. Purity and whiteness can be guaranteed

6. Lower investment in civil engineering

7. Smooth operation

8. Turnkey or EPC project available

ultrafine ball grinding mill

ultrafine ball grinding mill

ultrafine ball grinding mill
