26 / 28 Rollers Calcite And Limestone Ultrafine Grinding Mill With 97% Sieving Rate

large.img.alt
small.img.alt

Large Image :  26 / 28 Rollers Calcite And Limestone Ultrafine Grinding Mill With 97% Sieving Rate

Product Details:

Place of Origin: China
Brand Name: HK
Certification: ISO CE
Model Number: 198

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 30000-150000USD
Packaging Details: nude and plywood
Delivery Time: 30 DAYS
Payment Terms: L/C, D/A, T/T
Supply Ability: 1000 set per year
Detailed Product Description
Classifier: 30KW Blower: 75KW
Mill: 132KW Fineness: 400-2500mesh
Output: 1-6T/H
High Light:

Limestone Ultrafine Grinding Mill

,

Calcite Ultrafine Grinding Mill

,

28 Rollers Calcite Grinding Mill

26 or 28 Rollers Calcite and Limestone Ultrafine Grinding Mill for 400-2500 Mesh Powder with 97% Sieving Rate





Stucture of 26 or 28 Rollers Calcite and Limestone Ultrafine Grinding Mill:

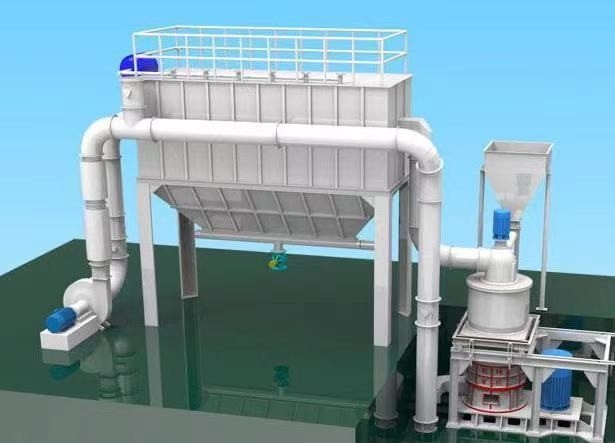

26 or 28 rollers calcite and limestone ultrafine grinding mill has the folllowing components: crusher, elevator, hopper, feeder, classifier, grinding mill, pulse-jet collector, blower and electric control cabinet.



The most important part of the 26 or 28 rollers calcite and limestone ultrafine grinding mill is the grinding housing, which influence the grinding efficiency and powder fineness. Perfect contact between rollers and ring in the grinding housing is most important. Our calcite and limestone ultrafine grinding mill arc or curved surface increases their effective working surface and improves the crushing efficiency. The rollers and rings contact surface and shapes should be consistent and tightly fit, which is good to the production of fine powder.



Working Principle of 26 or 28 Rollers Calcite and Limestone Ultrafine Grinding Mill:



26 or 28 rollers calcite and limestone ultrafine grinding mill can grind raw materials by impact, extrusion and grinding. There is a gap between the grinding roller and rings. When the rollers revolves round the main shaft, the grinding roller will move towards the ring by centrifugal force. Through the gap between the grinding roller and the grinding ring, the material will crushed by the impact, extrusion and grinding by the grinding roller.



The material is ground by the first layer of the grinding roller and grinding ring, then will fall into the second layer of the grinding roller be ground again as per the same principle, followed by the third and fourth layers. After the material is ground by the grinding roller in the last layer, it will fall onto the turntable under gravity and stretched out to the lowermost milling equipment, and brought to the interlayer between the inner and outer walls of the cylinder by negative pressure airstream, and once again rise to the top air classification system for separation. Qualified fine powder will pass through the classifier and enter into the pulse dust collector; coarse materials will be directly knocked to the grinding table and resettle in the pulverizing room for pulverization. The turntable is distributed in multiple layers. Thus, the material is sufficiently crushed to reach the desired fineness.





Customers from many countries had sourced this kind of 26 or 28 rollers calcite and limestone ultrafine grinding mill to grind calcite, limestone calcium carbonate, talc, barite and etc. According to the mill performance in customers’ factory, our customers think our ultrafine grinding mill is much much better than other mill.





Technical Data of Micro Powder Grinding Mill:





Mesh 21 Rollers 26 or 28 Roller
D97 Output Power Output Power
Kg/h kw/h Kg/h kw/h
300 3000-3500 43-50 5000-5500 43
800 2500-2800 54-60 3200-3800 62
1250 1500-1800 84-101 2300-2500 103
1500 1000-1300 116-152 2000-2300 118
2000 650-750 202-233 1500-1800 158
2500 600-650 233-253 1200-1300 197
Total Power 152kw 237kw





ultrafine grinding mill

ultrafine grinding mill
