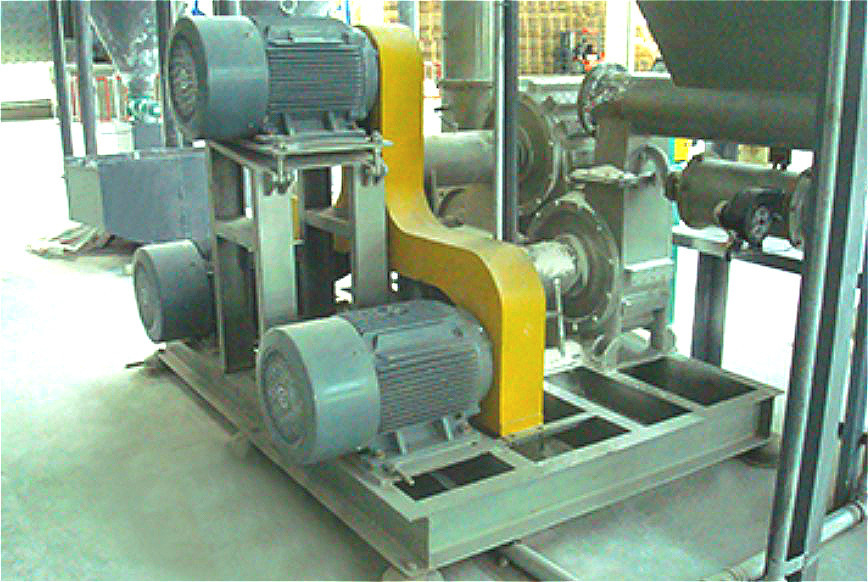

HK Coating Machine With Higher Coating Rate And Precise Temperature Control

HK Coating Machine With Higher Coating Rate And Precise Temperature Control
HK Coating Machine With Higher Coating Rate And Precise Temperature Control

Large Image :  HK Coating Machine With Higher Coating Rate And Precise Temperature Control

Product Details:

Place of Origin: China
Brand Name: HK
Certification: ISO CE
Model Number: 600

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 30000-100000
Packaging Details: nude and plywood
Delivery Time: 30 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Detailed Product Description
Coating Machine: 111KW Blower: 22KW
Output: 1500kg-3500kg Dusting Area: 150m²
High Light:

111KW Coating Machine

,

3500KG/H Coating Machine

,

1500KG/H Powder Coating Equipment

HK Coating Machine with Higher Coating Rate and Precise Temperature Control





The material enters the coating machine from the feed system, and the modifier is added by the metering pump. The material and the modifier are mixed at high speed several times in the coating machine, and the heat generated by the high-speed movement of the equipment can accelerate and help to finish powder surface modification. The finished product is collected by the negative pressure collection system in the pulse-jet collector.



HK Coating Machine Features and Advantages:



1. Continuous production, large processing capacity, can be used alone, but also can be connected to a variety of ultra-fine mills.

2. High coating rate, high activation index and low consumption of modified chemicals.

3. The equipment has the function of breaking up, and the modified product has no particle agglomeration phenomenon, no need to screen, and can be directly packaged.

4. Low production energy consumption: the minimum power consumption is 30 degrees/ton; the heat generated by the equipment is modified when the equipment is working, and no additional auxiliary heating system is required to save costs.

5. Modification temperature can be adjusted according to different material characteristics.

6. The system is produced under negative pressure, no dust is flying, and the working environment is excellent.



Main Components of HK Coating Machine:


Non-metallic mineral powder coating machine includes the following parts: raw material silo, pharmaceutical barrel, screw feeder, pharmaceutical metering and filling system, modification machine host, cyclone collector, pulse dust collector, induced draft fan, electric control system, etc. Partly composed.


The coating machine is composed of three shaped modification cylinders. The dried powder and the precisely metered modifier enter the modification cylinder at the same time. The main motor drives the high-speed rotating rotor to make the material flow as a snail, And the heat generated by relatively high-speed shearing, collision and friction with the stator installed on the reforming cylinder rapidly forms a film for modification.

Coating Machine



Technical Data of HK Coating Machine:



Technical Data

Model

Main Machine Power(KW) Spindle Speed(R/Min)

Capacity

(Kg/h)

Blower Power(KW)

Dusting Area

(m²)

300 55.5 4500 500-2000 5.5 60
600 111 2700 1500-3500 22 150
900 225 2000 3000-7500 45 300



Coating Machine
