High Surface Modification Rate Coating Machine With Higher Output

large.img.alt
small.img.alt

Large Image :  High Surface Modification Rate Coating Machine With Higher Output

Product Details:

Place of Origin: China
Brand Name: HK
Certification: ISO CE
Model Number: 300

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 30000-100000USD
Packaging Details: nude and plywood box
Delivery Time: 30 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 Set Per Year
Detailed Product Description
Main Machine: 18.5KW*3 Blower: 15KW
Feeder: Screw Feeder Coating Rate: 98%
Powder: Non-metallic Output: 500kg-7500kg
High Light:

PLC Control Feeding Coating Machine

,

7500KG/H Coating Machine

,

PLC Control Feeding Powder Coating Equipment

High Surface Modification Rate Coating Machine with Higher Output



Coating Machine Functions:



    The coating machine can achieve high coating rate with minimal cost. To use coating machine to do surface modification has important practical significance for improving powder performance, improving its practical value and opening up application fields. In polymer materials, plastics, rubber, adhesives and other composite materials, non-metallic powders must be modified into fillers, such as calcium carbonate, kaolin, talc, quartz, asbestos, magnesium hydroxide, hydrogen Alumina, etc., enhance the compatibility with the matrix, dispersibility, mechanical strength and overall performance.



    To use coating machine to do powder surface modification is one of the necessary processing methods for fillers to change from general incremental fillers to functional fillers. This is also the main purpose of surface modification for mineral fillers. The main functions of coating machine include dispersion, viscosity reduction, filling, and interface mechanics. The most commonly used powder modification methods are surface chemical modification methods, coating modification methods, and mechanochemical modification methods. According to the characteristics of modified materials, continuous production process or batch production process can be selected.



      The modifier can be selected from stearic acid or coupling agents (titanate coupling agent, aluminate coupling agent, phosphate coupling agent, etc.). It can achieve ideal activation effect on various inorganic mineral powders. Through dilution, emulsification and spraying, the dispersibility of the modifier is increased.



     The material to be modified is conveyed to the coating machine, where the materials are mixed, dispersed, and then sprayed by the atomized modifier sprayed by a metering pump, and then the powder is uniformly and completely coated. The temperature and time control of the coating machine must not only meet the requirements of the coating mechanism or modifier under technical conditions, but also ensure the adequacy of the coating.



     By uniformly feeding and quantitative feeding of modifier, the adequacy of material coating is ensured. After modification, the powder has multiple functions, such as dispersion, viscosity reduction, filling, and interface mechanics. Personalized solutions for powder surface modification based on material properties and product usage.





 Special Features of High Surface Modification Rate Coating Machine with Higher Output



1. 98% of the surface of all powder particles can be coated with modifier ( with special spray technology)

2. Higher powder coating rate and activated rate

3. No leakage of dust; auto control of material feeding by PLC system; easy operation

4. Continuous production, higher productivity; Running smoothly; less power consumption



This Coating Machine consists of 1. powder feeding device 2. modifier metering device 3. Spraying device 4. coating chamber 5. pneumatic system 6. pulse-jet collector 7. electric control cabinet



Working Principle of High Surface Modification Rate Coating Machine with Higher Output:

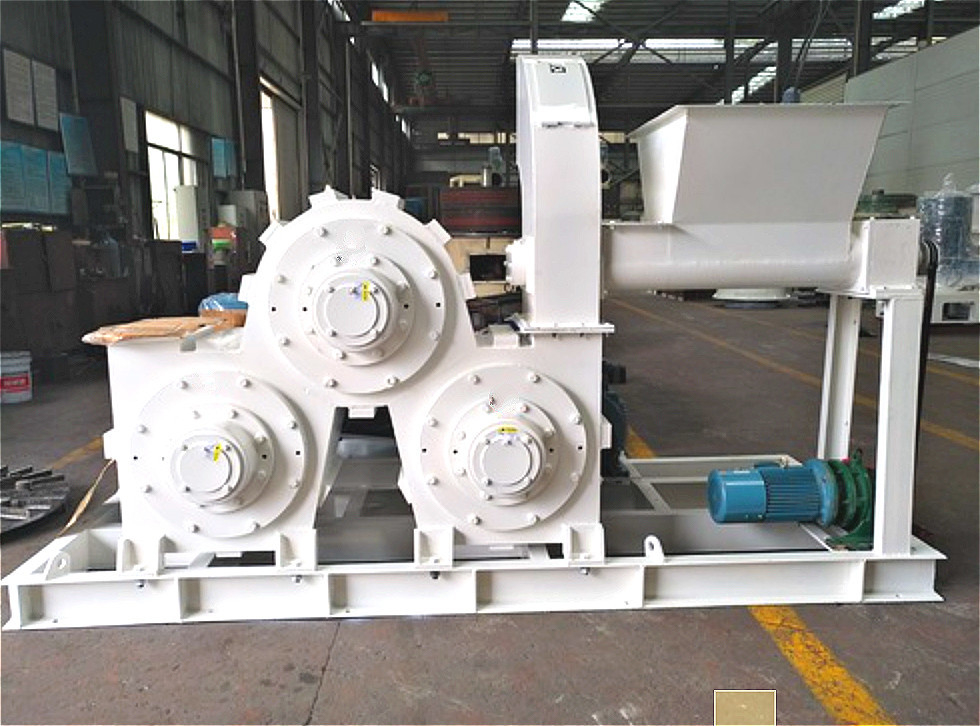

    Coating machine includes 3 mixing&scattering chamber, which can rotates in a high speed inside. In this way, modifier and powder can be mixed fully and will not reunite. The calcium carbonate powder and modifier go through the 3 devices one by one. At the same time, the modifier is being sprayed in the spraying room under the control of metering pump, which will be fully mixed with powder. In the coating machine chamber, the powder and modifier can be further contacted and mixed by impacting, sheering and colliding between powder. The coating machine always stays within a stable working temperature range to avoid change and invalidity of modifier.



Technical Data of Modification Rate Coating Machine with Higher Output:



Technical Data

Model

Main Machine Power(KW) Spindle Speed(R/Min)

Capacity

(Kg/h)

Blower Power(KW)

Dusting Area

(m²)

300 55.5 4500 500-2000 5.5 60
600 111 2700 1500-3500 22 150
900 225 2000 3000-7500 45 300



coating machine
