Product Details:
Payment & Shipping Terms:
|
| Capacity: | 1-20T/H | Fineness: | 200-2500mesh |
|---|---|---|---|
| Roller: | 3 | Classifier: | 5 Motors |
| Sieving Rate: | 97% Or 98% | ||
| High Light: | vrm mill,vertical cement mill,ultrafine vertical calcite grinding mill |
||

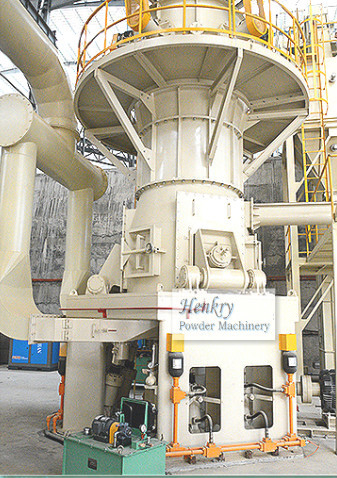

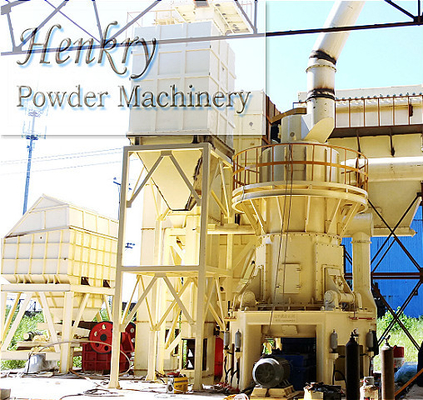

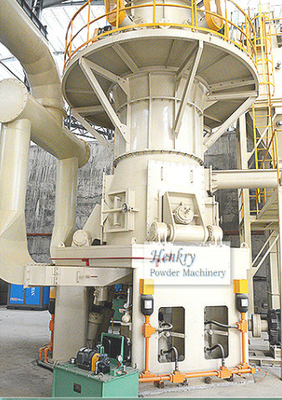

Calcite Ultrafine Vertical Roller Grinding Mill
The calcite ultrafine vertical roller grinding mill can produce ultrafine calcite powder with round shape featuring better fluidity and cohesiveness. It has significant advantages: such as energy-saving effects and solve the contradiction between ultrafine powder fineness, output and power consumption. Except ball mill and jet mill, calcite ultrafine vertical roller grinding mill is the best choice for producing ultrafine talc powder.
Calcite powder can be used in artificial stone, artificial floor tiles, rubber, coatings, composite new calcium plastics, cosmetics, glass, medicine, paint, ink, electrical insulation, textile, building materials, linoleum construction supplies, fire-resistant ceilings and daily chemicals. As a filler in other products, it can not only reduce the product cost of various industries, but also improve the role and performance of related products, and increase the volume of the product. It is one of the most versatile inorganic filler master batches. As a result, calcite powder has become the upstream and raw material for many industries, including almost all light and heavy industry production and manufacturing industries.
Working Principle of Calcite Ultrafine Vertical Roller Grinding Mill:
The reducer makes the grinding table rotate. The crushed calcite conveyed to the grinding house by belt conveyor falls down onto the grinding table because of gravity. With help of the centrifugal force of the rotating grinding table, calcite moves from center to edge. And at the same time, calcite is ground between roller and ring. After being ground, the ultrafine calcite powder goes through the classifier into the pulse-jet collector with the help of air blower sucking. Coarser calcite powder will fall down to the mill again due to its large self-gravity and get reground.
The Advantages of Calcite Vertical Roller Roller Grinding Mill:
1. Wide range of powder fineness: Turbo air classifier is installed in the calcite ultrafine vertical grinding mill, which can produce powder with various fineness and higher sieving rate.
2. Lower power consumption and Higher Output
3. The calcite powder produced by ultrafine vertical roller grinding mill has a narrow particle size distribution, control gap of 2μm powder content, high profit margins and added value.
4.Because of the use of hydraulic system to adjust the gap between roller and ring, which brings lower vibration and lower noise
5. Environment-friendly and 99.99% of the powder can be collected.
6. Automatic control with PLC system to guarantee easy operation and labor saving.
Technical Data of Calcite Vertical Roller Roller Grinding Mill:
