Guangxi Henkry Machinery Co., Ltd
Home ProductsMicro Powder Grinding Mill

Spodumene Superfine Micro Powder Grinding Mill YGM Raymond Roller

Thanks for your kindly hospitality. Your company is very professional , we will have nice cooperation in the near future.

—— Audrey Vespe

In the process of production and before shipment, every one of our products are very strict professional testing to ensure the optimal quality of the product.

—— Andrew

I'm Online Chat Now

Spodumene Superfine Micro Powder Grinding Mill YGM Raymond Roller

Spodumene Superfine Micro Powder Grinding Mill YGM Raymond Roller
Spodumene Superfine Micro Powder Grinding Mill YGM Raymond Roller Spodumene Superfine Micro Powder Grinding Mill YGM Raymond Roller Spodumene Superfine Micro Powder Grinding Mill YGM Raymond Roller Spodumene Superfine Micro Powder Grinding Mill YGM Raymond Roller Spodumene Superfine Micro Powder Grinding Mill YGM Raymond Roller Spodumene Superfine Micro Powder Grinding Mill YGM Raymond Roller

Large Image :  Spodumene Superfine Micro Powder Grinding Mill YGM Raymond Roller

Product Details:

Place of Origin: Shanghai
Brand Name: Clirik

Payment & Shipping Terms:

Price: $120,000.00/sets 1-4 sets
Packaging Details: wooden box
Supply Ability: 20 Set/Sets per Month
Detailed Product Description
Applicable Industries: Manufacturing Plant, Construction Works , Energy & Mining Video Outgoing-inspection: Provided
Machinery Test Report: Provided Core Components: PLC, Motor
Condition: New Type: Raymond Mill
Motor Type: AC Motor Capacity(t/h): 1-28, 1-28 T/H
Motor Brand: Siemens Input Size: 0-20 Mm
High Light:

Raymond Roller Micro Powder Grinding Mill

,

Spodumene Micro Powder Grinding Mill

,

Spodumene Raymond Grinding Mill

Product Description
Spodumene Superfine Micro Powder Grinding Mill YGM Raymond Roller 0
YGM Raymond Roller Mill
Brand: Clirik
Model: YGM
Input size: 0-30 mm
Final product size: 50-500 mesh
Processed Material: Feldspar, calcite, limestone, talc, rare earth, marble, phosphate ore, kaolin, bentonite, gypsum, dolomite and other more than 100 kinds of Moh's hardness no more 6 minerals.
Applications: Metallurgy, construction, mining, chemical industry, etc.

YGM Roller Grinding Machines Superfine Powder Spodumene Raymond Mill


>>>More information welcome to Click Here
Spodumene Superfine Micro Powder Grinding Mill YGM Raymond Roller 1
Advantages of YGM Raymond Roller Mill
High Capacity:
YGM series high pressure suspension grinding mill is upgraded from traditional Raymond mill, which make capacity 20% higher than Raymond mill.

Widely Used:
Clirik can supply more than 200 sets YGM series high pressure mills to customers and distributors. YGM series high pressure mills widely used for grinding calcium carbonate, talc, gypsum, feldspar, barite,
pyrophyllite,dolomite,kaolin,coke,etc.

Adjusted Output Size:
50 mesh-425 mesh(35-200 micron ).Output size is adjustable by adjusting running speed of classifier.

High Capacity and Lower Power Consumption:
Eg: YGM9517 Raymond Roller Mill Parameter for calcium carbonate powder making



Fineness (mesh)
Capacity (T/H)
Power Consumption for one ton powder (Kwh/ton)
Total Line Motors Rated Power:82.5Kw
80-120
5.5-6
13.7-21

180-200
4.5-5
23.2-25.7

300-325
3-3.5
33-38

Less Land Covering Space & Less Labor Required:
One set YGM9517 high pressure suspension grinding mill installation cover 48 square meter space, 8 meter height . Total production line need 2-3 workers, one for raw material feeding , one for operation and maintenance , the last one for final packing.

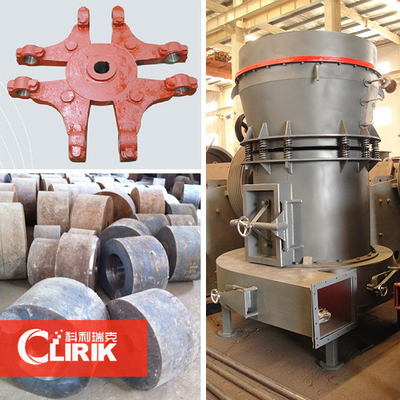

Long lifecycle of Wearing Parts:
Our wearing parts made by high Mn material, which is designed by our technical department with Bao Group together. The normal wearing parts includes ring, roller, scraper knife and scraper knife base , normally for grinding calcium carbonate, 10 hours/day, 30days/month, they can work 12-18 months.
Why Choose Us
Spodumene Superfine Micro Powder Grinding Mill YGM Raymond Roller 2
Spodumene Superfine Micro Powder Grinding Mill YGM Raymond Roller 3
Spodumene Superfine Micro Powder Grinding Mill YGM Raymond Roller 4
Our Service
Pre-sale services
Act as a good adviser and assistant of clients; enable them to get rich and generous returns on their investments;
♥ Select equipment model;
♥ Deign and manufacture products according to clients' special requirement;
♥ Train technical personnel for clients.

Services during the sale
Respect clients; devote ourselves to improving the total value of clients.
♥ Pre-check and accept products ahead of delivery;
♥ help clients to draft solution.

After-sales service
Provide considerate services to minimize clients' worries.
♥ Assist clients to prepare for the first construction scheme;
♥ Install and debug the equipment;
♥ Train the first-line operators on site;
♥ Examine the equipment regularly;
♥ Take initiative to eliminate the troubles rapidly at site;
♥ Distribute the guarantee fittings door-to-door;
♥ Provide technical exchanging;
♥ Provide maintenance for big items.
Specification
Model

YGM7815
YGM9517
YGM1280
YGM1300
YGM1620
YGM1720
Roller
(piece)
/
(mm)
Quantity
3
4
3
4
4
4

Diametwe
260
310
370
410
450
510

Height
150
170
240
280
300
300
Ring
(mm)
Inner Diameter
780
950
1170
1270
1500
1720

Height
150
170
240
280
300
300
Feeding Size(mm)

15
25
20
20
20
35
Finished Size(mm)

0.613-0.033





Mill System Power(Kw)

35.7
72.65
145.15
202.15
322.2
450
Capacity(t/h)

1-3
2.1-5.6
4.5-12
6.5-16
8-20
10.5-28
Overall Dimension(m)

43*35*51
71*59*79
93*56*82
91*82*84
125*57*105
115.5*95*105
------------------------------------------------------------------------------------------------------------
Related Product
Raymond mill is Clirik hot sale powder grinding mills, beside Raymond mill, we also can supply other mining equipment as following...
there are more mining machines>>>Online Store
Spodumene Superfine Micro Powder Grinding Mill YGM Raymond Roller 5

CLUM Vertical Roller Mill

D50 2 micron meter
150-2500 mesh
1-25 t/h capacity
Spodumene Superfine Micro Powder Grinding Mill YGM Raymond Roller 6

HGM Ultra Fine Mill

D97 5 micron meter
325-3000 mesh
0.5-45 t/h
Spodumene Superfine Micro Powder Grinding Mill YGM Raymond Roller 7

Stone Crusher

stone crusher
1-300 t/h
0-8 mm output size
------------------------------------------------------------------------------------------------------------
Working Principle
Spodumene Superfine Micro Powder Grinding Mill YGM Raymond Roller 8
Working Principle YGM Raymond Roller Mill
The working principle is as follows: load the stuff for grinding evenly and continuously into the grinding chamber of the main frame. Due to the centrifugal force in rotation, the roller swings go outward and presses closely upon the ring. The shovel carries the stuff to the space between the roller and ring. When the roller rolls, the stuff is thus grind. After being grind, the stuff is to be routed to the classifier along wind belt of the blower and the rough powder will be put back to the grinder for regrinding.

The fine powder flows into the cyclone collector together with air flow and is expelled from the powder output pipe as product. In the grinding chamber, since the stuff contains moisture to some extent, the heat generated during grinding makes the moisture evaporate; since the pipeline joints are not airtight, the external air is sucked in and the circulation air mass increases. In order to enable the grinder to work in negative pressure, the increased air flow is guided to the duster and sequentially to the atmosphere after purification.
Company Profile

VR
Spodumene Superfine Micro Powder Grinding Mill YGM Raymond Roller 9
Spodumene Superfine Micro Powder Grinding Mill YGM Raymond Roller 10
Spodumene Superfine Micro Powder Grinding Mill YGM Raymond Roller 11
Spodumene Superfine Micro Powder Grinding Mill YGM Raymond Roller 12
Spodumene Superfine Micro Powder Grinding Mill YGM Raymond Roller 13
Spodumene Superfine Micro Powder Grinding Mill YGM Raymond Roller 14
Spodumene Superfine Micro Powder Grinding Mill YGM Raymond Roller 15
Shanghai Clirik Machinery located in Pudong New district of Shanghai China as a pioneer enterprise, which is specializing in research, manufacture and sales of all kinds of mining equipment. Our company has already formed a full set of modern production line, equipped with intelligent, standardized testing and controlling laboratories, owned a professional team for R&D, production, sales and service. So far, we have established a whole production chain, the products cover micro powder grinding mill, high pressure grinding mill, European version coarse grinding mill, hammer crusher, jaw crusher, screw conveyor, bucket elevator and so on. They are widely used in the industry of mining, construction materials, chemicals, metallurgy, transportation, hydraulic engineering and so on. Specially we independently developed HGM micro powder grinding mill, which are not only renowned in domestic market, but also have been sold widely in Eastern Europe, Middle East, Africa, South Asia, Southeast Asia, Oceania, and America, etc. We still insist on the communication and cooperation with prestigious scientific research institutions from both home and abroad to make our development ability always is in the domestic front. Based on the principle of constant innovation and quality guarantee, customer foremost, we are able to provide our customers not only the highest quality products at the most favorable price but also the most reasonable solution, such as the selection of the equipment, optimized process configuration and a full range of technical support, therefore we always follow your steps, pursue your value and achieve your benefit.
Spodumene Superfine Micro Powder Grinding Mill YGM Raymond Roller 16
Our Company
Spodumene Superfine Micro Powder Grinding Mill YGM Raymond Roller 17
Our Workshop
Spodumene Superfine Micro Powder Grinding Mill YGM Raymond Roller 18
Team Building
Spodumene Superfine Micro Powder Grinding Mill YGM Raymond Roller 19
Our Technology
Spodumene Superfine Micro Powder Grinding Mill YGM Raymond Roller 20
Our Exhibition
Spodumene Superfine Micro Powder Grinding Mill YGM Raymond Roller 21
Customer Visit
Spodumene Superfine Micro Powder Grinding Mill YGM Raymond Roller 22
Customer Working Site
FAQ
1. who are we?
We are based in Shanghai, China, start from 2010,sell to Mid East(30.00%),Africa(20.00%),Southeast Asia(19.00%),South Asia(15.00%),North America(3.00%),South America(3.00%),Domestic Market(3.00%),Southern Europe(2.00%),Eastern Europe(00.00%),Eastern Asia(00.00%),Western Europe(00.00%),Central America(00.00%),Northern Europe(00.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Raymond Mill and other mining use equipment, such as: ultra fine grinding mill, ball mill, crusher and etc..

4. why should you buy from us not from other suppliers?
1. CE, ISO9001 2. factory sell directly 3. 30 years experience, professional 4. Sales market all over the world 5. good after sales serive

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CPT,DDU,Express Delivery;
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,Western Union;
Language Spoken:English,Chinese,French
