Product Details:
Payment & Shipping Terms:
|
| Shell Diameter: | 600-1500mm | Shell Length: | 1200-3000mm |
|---|---|---|---|
| Magnetic Strength: | MT>100 | Feeding Size(mm): | 0-3 |
| High Light: | wet magnetic separator,magnetic machine,Dry Process Magnetic Separator Machine |
||
Dry Process And Higher Separation Efficiency Magnetic Separator:
Magnetic Separator is used for iron removal of coal, non-metallic minerals, building materials and other materials. The magnetic system of the magnetic separator is made of high-quality ferrite material or compounded with rare earth magnet steel.According to the needs of users, we can provide magnetic separators with different surface strengths .
Magnetic separator in the course of motion , the non-magnetic minerals such as gangues entrained in the magnetic or magnetic chain fall off during the turning, and the concentrate is discharged to the magnetic system with the weakest magnetic force at the edge of the magnetic system and discharged under the action of the flushing water discharged from the unloading water pipe.
High gradient iron ore magnetic separator can separate the raw materials with different magnetic rigidities .The machine works under the magnetic force and machine force .Magnetic separator is designed to recover ferromagnetic materials.The magnetic separator are reliable in designs and sizes to the magnetic system with its unique design , which has a proven record of high efficiency. The Magnetic Separators are available in cyclic design with process vessel diameters from 220 mm to 3,050 mm.
1. Magnetic system is compounded of ferrite and permanent magnets; the average magnetic induction intensity of cylinder surface is 100~600mT.
2. The same cylinder can be equipped with three types of tank adapting to different dressing process.
3. Small area taken, good separation for magnetic mineral, reduce the load of next process magnetic separator price.
Packaging of Magnetic Separator:
Standard Container, Nude Packs or in Bulk. The electrical motor or spare parts will be packed by wooden case or steel frame. Unique offers various ways of package, fumigation-free wooden cases, steel plate cases, or as the clients' request.

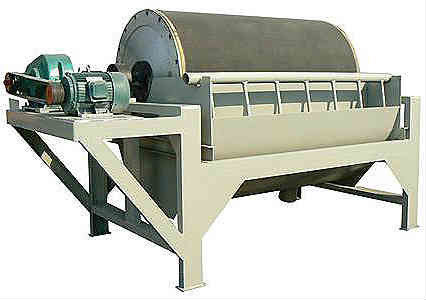

The magnetic separator has the advantages of simple structure, large processing capacity, convenient operation and easy maintenance. Structural characteristics of magnetic separator: Wet permanent magnet drum magnetic separator is mainly composed of a cylinder, a magnetic system, a tank and a transmission part. The cylinder is welded into a cylinder by 2-3mm stainless steel coils, the end cap is made of cast aluminum, and the cylinder is connected with stainless steel screws. The motor passes the reducer to drive the cylinder for rotary motion. The magnetic system is an open type magnetic system, which is housed in a cylinder.
Technical Data of Magnetic Separator:
| Model | Shell Diameter (mm) | Shell Length (mm) | Magnetic Strength | Revolving Speed (r/min) | Feeding Size(mm) | Capacity (t/h) | Power (kw) |
| HK6012 | 600 | 1200 | MT>100 | <35 | 2-0 | 10-20 | 1.5 |
| HK 6018 | 600 | 1800 | MT>100 | <35 | 2-0 | 15-30 | 2.2 |
| HK 7518 | 750 | 1800 | MT>120 | <35 | 2-0 | 20-45 | 2.2 |
| HK 9018 | 900 | 1800 | MT>130 | <35 | 3-0 | 40-60 | 3 |
| HK 9021 | 900 | 2100 | MT>130 | <35 | 3-0 | 45-60 | 3 |
| HK 9024 | 900 | 2400 | MT>130 | <28 | 3-0 | 45-70 | 4 |
| HK1018 | 1050 | 1800 | MT>135 | <20 | 3-0 | 50-75 | 5.5 |
| HK 1021 | 1050 | 2100 | MT>135 | <20 | 3-0 | 50-100 | 5.5 |
| HK1024 | 1050 | 2400 | MT>135 | <20 | 3-0 | 60-120 | 5.5 |
| HK1218 | 1200 | 1800 | MT>135 | <18 | 3-0 | 80-140 | 5.5 |
| HK1224 | 1200 | 2400 | MT>135 | <18 | 3-0 | 85-180 | 7.5 |
| HK1230 | 1200 | 3000 | MT>135 | <18 | 3-0 | 100-180 | 7.5 |
| HK1530 | 1500 | 3000 | MT>135 | <14 | 3-0 | 170-280 | 11 |
