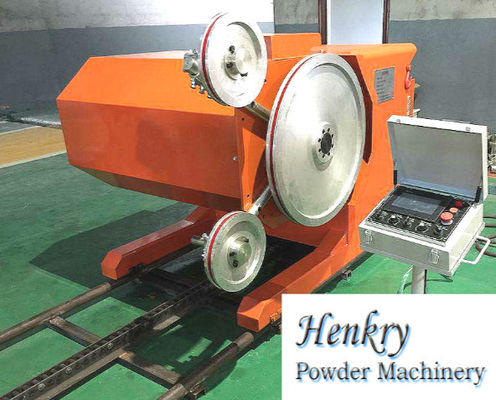

Linear Speed 20-100 M/S Granite Cutting Machine Max Cutting Length 20-100M

Linear Speed 20-100 M/S Granite Cutting Machine Max Cutting Length 20-100M
Linear Speed 20-100 M/S Granite Cutting Machine Max Cutting Length 20-100M Linear Speed 20-100 M/S Granite Cutting Machine Max Cutting Length 20-100M

Large Image :  Linear Speed 20-100 M/S Granite Cutting Machine Max Cutting Length 20-100M

Product Details:

Place of Origin: China
Brand Name: HK
Certification: ISO CE
Model Number: 45

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: STEEL PLATE
Delivery Time: 30 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 SET PER YEAR
Detailed Product Description
Granite Cutting Machine: 45 Linear Speed (m/s): 20-100
Lateral Move Length(mm): 360 Weight (kg): 2600
Wheel Diameter(mm): 800mm Max Cutting Length (M): 20-100
High Light:

wire saw machine for granite


diamond wire cutting machine


no vibration granite cutting machine

Granite Cutting Machine with Max Cutting Length 20-100M


Granite Cutting Machine:


     The quality of granite depends on the mineral composition and structure. Granite with good quality features fine and uniform crystal particles, less mica content and more quartz and without contain pyrite. Granite is not easily weathered and deteriorated, and its appearance and color can be maintained for more than 100 years, so it is mostly used for wall foundations and exterior wall finishes. Due to its high hardness and abrasion resistance, granite is also often used in advanced building decoration projects, such as the floor of the lobby.

Because granite is harder and acid-resistant than marble, it is more suitable for outdoor balcony, courtyard, guest room floor and windowsill in home decoration.


     The granite cutting machine can cut the granite with no vibration. The cutting is done with the help of the diamond wire rotating around the drive wheel. As there is no vibration, the cutting will have no impact on the granite original structure and no minor cracks in the stone, which can keep working life and structural force as before.


    The granite cutting machine has low noise. During the cutting process, there is almost no noise except the friction between granite and diamond wire. The sound can be controlled within within 44dBA.


    The granite cutting machine can guarantee no pollution in the process of cutting. Water will be spay onto the diamond wire to mix water with granite powder, and there is no powder floating in the air. The cooling water can be reused after being recovered on site.

Granite cutting machine has the following components: motor, a flywheel, a guide wheel, and a wire saw chain (made of diamond material): its power comes from motor directly driving the driving wheel, which drives the diamond wire to rotate and do cutting.

The granite cutting machine power head is made relatively heavy to make powerful and stable cutting. The power head can rotate 360 degree to cut at any angle for flexible cutting.


The operation of granite cutting machine:


     Firstly, press the start button and the motor starts to work. And the driving wheel rotates, so the diamond wire will also move. At this time, the diamond wire becomes tense, and the water also starts to spray onto the diamond wire. And also adjust the guide wheel to ensure the cutting surface on the same line.


   During the cutting process, the cutting parameters are adjusted by operating the control panel to ensure that the linear speed of the diamond rope is about 20m/s. On the other hand, a sufficient amount of flushing liquid should be guaranteed during the cutting process to ensure the cooling of the diamond wire and the grinding. The dust is taken away. The cutting operation achieves stable speed, stable parameters and stable equipment.


Technical Data of Granite Cutting Machine:



Technical Parameter

HK22 HK37 HK45 HK55 HK75
Main Motor Power KW 22 37 45 55 75
Wheel Diameter(mm) 600 800 800 800 800
Linear Speed (m/s) 0-40 0-40 0-40 0-40 0-40
Max Cutting Length (M) 20-60 20-80 20-100 20-120 20-150
Machine Moving Motor(kw) 0.55 0.75 0.75 1.1 1.5
Lateral Move Length(mm) 260 350 350 450 550
Rotation Degree 360 360 360 360 360
Machine Move Speed(m/h) 0-40 0-40 0-40 0-40 0-40
Trail Length(M)*Amount 2M*3 2M*4 2M*4 2M*4 2M*4
Temperature Allowed℃ -15--+40 -15--+40 -15--+40 -15--+40 -15--+40
Weight (kg) 1500 2400 2600 3300 3800
Dimension(mm) 1560*1100*1260 1850*1200*1300 1850*1200*1300 2000*1300*1350 2150*1400*1360


Granite Cutting Machine

Granite Cutting Machine
