Pendulum Calcite Grinding Mill , Pendulum Grinder With 15-20% Higher Output

Calcite Pendulum Roller Grinding Mill

Calcite powder can be used in artificial stone, artificial floor tiles, rubber, coatings, composite new calcium plastics, cosmetics, glass, medicine, paint, ink, electrical insulation, textile, building materials, linoleum construction supplies, fire-resistant ceilings and daily chemicals. As a filler in other products, it can not only reduce the product cost of various industries, but also improve the role and performance of related products, and increase the volume of the product. It is one of the most versatile inorganic filler master batches. As a result, calcite powder has become the upstream and raw material for many industries, including almost all light and heavy industry production and manufacturing industries.

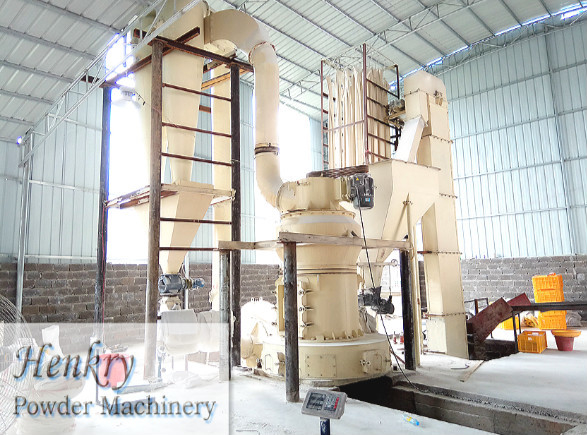

Calcite Pendulum Roller Grinding Mill

    For producing 100-400mesh calcite powder, calcite pendulum roller grinding mill is often used, which features low investment, higher output, easy operation, longer working life, less factory occupying area. Generally, speaking, the calcite pendulum roller grinding mill can produce 80mesh, 100mesh, 200mesh, 325mesh and 400mesh with a production capacity from 2T/H to 50T/H.

    Working Principle of Calcite Pendulum Roller Grinding Mill

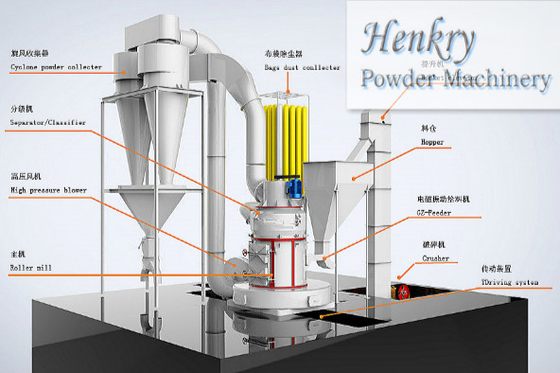

    Elevator takes the crushed calcite into the hopper, which will be conveyed to grinding house by belt conveyor or vibrating feeder. The rollers in the roller assembly will rotate, which are drived by the reducer. The calcite will be ground between roller and ring because of the roller centrifugal force. The ground powder with required fineness will go up through the classifier with help of high-pressure blower. And the coarse powder that cannot go through the classifier falls down to the grinding chamber, which will be reground between roller and ring. The qualified powder will be collected in the cyclone or in the pulse jet collector.

    Improved Performance of Calcite Pendulum Roller Grinding Mill

1. Roller and Ring are made higher and the shovel is made larger to increase the grinding contact surface and grinding force to increase output.
2. As the calcite with low hardness, and easy to grind; we make the roller number 3 for small mill and 4 for big mill, this can increase the air volume passing through the grinding chamber, which will increase the output by 15-20%
3. Improved Reducer: the newly-designed reducer rotation can be adjusted according to customer’s requirement to increase output.
4. Improved Classifier: the turbine wheel use big blade to increase the fineness control, classifying precision and air volume passing area.
5. Bigger size cyclone to increase collecting efficiency.
6. High-pressure blower: air pressure can be increased to make air conveying capacity

We had help customer set up more than 1000 plants in China,which also help us accumulate enough knowledge in produce calcite roller grinding mill and powder production.

Technical Data of Calcite Pendulum Roller Grinding Mill:
