3KW Ultrafine Powder Packing Machine 400-3000 Mesh High Precision 0.05-0.01kg

Thanks for your kindly hospitality. Your company is very professional , we will have nice cooperation in the near future.

—— Audrey Vespe

In the process of production and before shipment, every one of our products are very strict professional testing to ensure the optimal quality of the product.

—— Andrew

I'm Online Chat Now

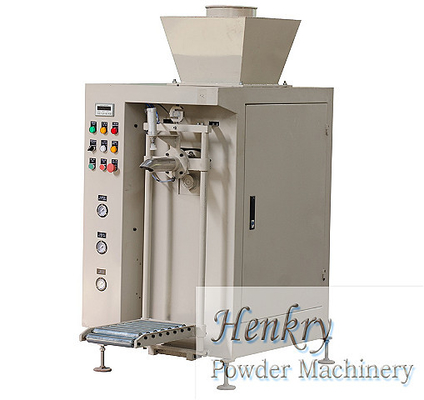

3KW Ultrafine Powder Packing Machine 400-3000 Mesh High Precision 0.05-0.01kg

3KW Ultrafine Powder Packing Machine 400-3000 Mesh High Precision 0.05-0.01kg
3KW Ultrafine Powder Packing Machine 400-3000 Mesh High Precision 0.05-0.01kg

Large Image :  3KW Ultrafine Powder Packing Machine 400-3000 Mesh High Precision 0.05-0.01kg

Product Details:

Place of Origin: China
Brand Name: HK
Certification: ISO
Model Number: HK-S

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: plywood box
Delivery Time: 10 days
Payment Terms: L/C, T/T, Western Union, D/P, D/A
Supply Ability: 10000set per year
Detailed Product Description
Packing Weight: 5-100kg Precision: 0.05-0.01kg
Packing Speed: 150-300bag/hour(25kg) Motor: 3KW
Dimension: 1020*700*1600mm
High Light:

powder packaging equipment

,

powder packaging systems

,

3KW Ultrafine Powder Packing Machine

Ultrafine Powder Packing Machine for 400-3000 Mesh Powder



 The reason why we use ultrafine powder packing machine to do packing:

     The finer powder is easy to float in the air, which is bad to people and environment. The finer the power is, the more difficult to do packing. Due to the specific low gravity of the powder, the falling speed of powder is lower. And some ultrafine powder will float when feeding, which will influence packing speed. There exists weighing error for pack ultrafine powder, as there is more air in the powder, so it is not easy to pack ultrafine powder precisely. For packing ultrafine powder, we usually use small bag with a standard of 25kg, so the packing speed maybe a little lower.



     Ultrafine powder packing machine is good to pack non-metallic powder with a fineness ranging from 200 to 2000mesh ultrafine powder. For example: calcium carbonate, modified calcium carbonate, kaolin, talc, white clay and etc.. The feeding structure use spiral structure to improve ultrafine powder proportion. The ultrafine powder packing machine can do 25-kg bag packing within 7 days, which increase packing speed. For improving packing accuracy, this packing machine is equipped with highly precise electronic scales.



     Bag counting and total weight of the packaged powder can be shown in the packin machine panel. The ultrafine powder packing machine has used Japan or Germany electrical parts to guarantee the stable performance and packing accuracy. And there is a alarm in the buffering silo to let workers know whether there is powder in the silo.



     The ultrafine powder packing machine dust anti-leakage system: The plastic bag is arranged in a suitable place on the upper part of the bag-making barrel. And there is a sealing ring to prevent the plastic bag from contacting the powder. Before feeding, workers should firstly inflate the seal ring to isolate the pre-seal from dust. When the powder material is put into the plastic bag from the center of the barrel, and the weight meets the requirements, the horizontal gripper clamps the plastic bag, then releases the sealed air pressure, and then fills a high-pressure rotating airflow from the double-barreled sandwich to place the horizontal grip A small amount of dust adheres to the upper part of the device can be blowed away tangentially.





Features of ultrafine powder packing machine:

1. New enhanced impeller structure, more efficient.

2. Wide adaptability to powder characteristics, high cost performance.

3. Fast packaging rate and accurate weighing

4. Flexible adjustment and setting, wide weighing range.

5. Innovative and practical weighing transmission structure.

6. Various working status display during operation, self-diagnosis function of instrument system fault.



Technical Data of ultrafine powder packing machine:

Packing Weight 5-100kg
Precision on the Panel 0.05-0.01kg
Packing Speed 150-300bag/hour(25kg)
Working Temperature -10~40℃
Motor 3kw
Voltage 380V
Dimension 1020*700*1600mm
Weight 360kg



ultrafine powder packing machine
