Calcite Talcum Barite Fluorite Raymond Roller Mill For Gravel Mine

Name: Calcite Talcum Barite Fluorite Raymond Roller Mill For Gravel Mine
Brand: Clirik
SKU: Clirik
Price: 15 USD
Availability: InStock
Rating: 4.6 (189 reviews)

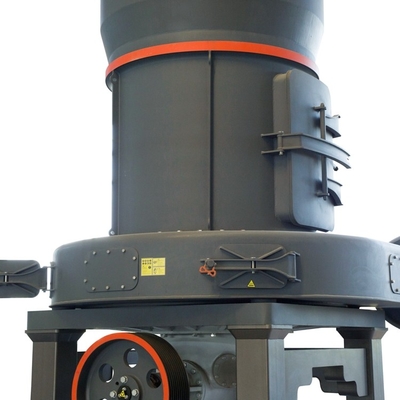

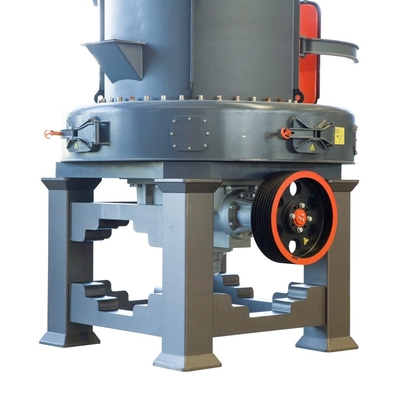

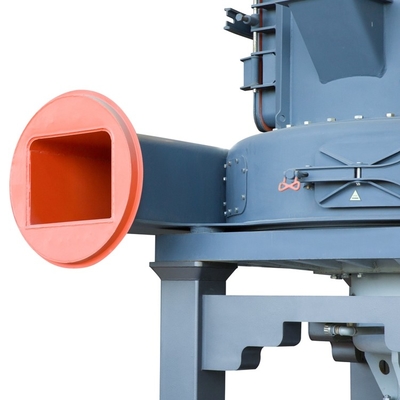

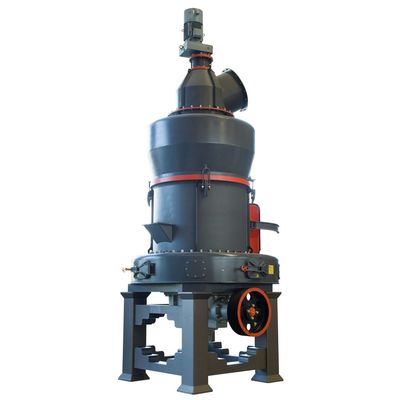

Large Image : Calcite Talcum Barite Fluorite Raymond Roller Mill For Gravel Mine

Product Details:

Place of Origin:	Shanghai, China
Brand Name:	Clirik

Payment & Shipping Terms:

Price:	$15,890.00/sets 1-4 sets
Packaging Details:	wooden box
Supply Ability:	100 Set/Sets per Month

Contact Now

Detailed Product Description

Applicable Industries:	Construction Works , Energy & Mining	Condition:	New
Type:	Raymond Mill	Motor Type:	AC Motor
Capacity(t/h):	1-30	Dimension(LWH):	Customized
Weight:	1200 KG	Brand Brand:	Siemens
Control System:	PLC	Output Size:	50-450 Mesh
High Light:	Fluorite Raymond Roller Mill , Gravel Mine Raymond Roller Mill , 50 Mesh Micro Powder Grinding Mill

Calcite Talcum Barite Fluorite Raymond Roller Mill for Gravel Mine Roller Mill

Product Description

YGM series Raymond roller mill is also called Raymond grinding mill, Raymond pulverizer. YGM series Raymond roller mill is the new type Raymond mill of our company, which is suitable for processing various non-flammable and non-explosive mineral materials with Moh's hardness less than 9.3 and humidity less than 6%.

The main parts of Raymond roller mill is grinding roller, grinding ring, grinding roller assembly, the plum flower frame, air
flue, coupling, perching knife and so on.

Technology Date of Raymond Mill

Note: This specification is just referencing, any changes are subject to the products.

Model	Diameter(mm)	InputSize(mm)	FinalSize(mesh)	Host Power(KW)	Capacity(T/H)	Dimension <LWH>(mm)
YGM9720	970	20	80-600	97	1.5-7.5	820060107200
YGM1280	1280	20	80-600	145	2-10	850075008200
YGM1300	1300	20	80-400	222	2-14	1010093008330
YGM1620	1620	30	80-400	322	2.5-18	10250809010510
YGM1720	1720	35	80-325	442	6-30	125001225010400
YGM2150	2150	35	80-325	572	12-40	120001160011000

Raymond roller mill can be widely used in the fields of metallurgy, construction, chemical industry, mining, highway construction etc,. The granularity of the finished powder size can be adjusted between 30 and 425 mesh. Examples of processing materials include quartz, feldspar, barite, calcite carbonate, limestone, talc, ceramic, iron ore, carborundum, bauxite, rock phosphate, coal and other materials, about 400 kinds of materials in total.

Working Principle of Raymond Mill

The working principle is as follows: load the stuff for grinding evenly and continuously into the grinding chamber of the main frame. Due to the centrifugal force in rotation, the roller swings go outward and presses closely upon the ring. The shovel carries the stuff to the space between the roller and ring. When the roller rolls, the stuff is thus grind. After being grind, the stuff is to be routed to the classifier along wind belt of the blower and the rough powder will be put back to the grinder for regrinding.

The fine powder flows into the cyclone collector together with air flow and is expelled from the powder output pipe as product. In the grinding chamber, since the stuff contains moisture to some extent, the heat generated during grinding makes the moisture evaporate; since the pipeline joints are not airtight, the external air is sucked in and the circulation air mass increases. In order to enable the grinder to work in negative pressure, the increased air flow is guided to the duster and sequentially to the atmosphere after purification.

Advantages of Raymond Mill

1. Higher output. Its output increases by 10%-20% comparing with Raymond mill under the same power condition.

2. Larger range of final fineness. Size of final product can be 0.613 mm (30 mesh) –0.033 mm (425 mesh). Some can reach the fineness of 0.013 mm (1000 mesh).

3.Good dust control. High Pressure Suspension Mill meets the requirement of national dust-dump standard.

4.Easy to operate. The whole system is combined by some independent systems, and the cohesion between the systems is good.

5. Excellent sealing. The multi-class seals are adopted to keep the grinding equipment tight closed.

Related Products---Raymond Mill

If you are interested in our mining equipment, and want to know more details about the stone powder production line project, you are welcome to visit our---

Online Store

Ball Mill

----------------------------------------------------------------

uniform powder size production

HGM Ultra Fine Mill

----------------------------------------------------------------

150-3000 mesh powder processing

Jaw Crusher

----------------------------------------------------------------

And other stone crushing machine

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
