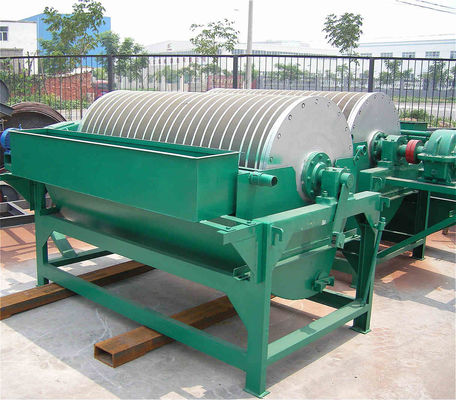

Good Strength Magnetic Separator Machine High Reliability Mechanical Structure

Good Strength Magnetic Separator Machine High Reliability Mechanical Structure
Good Strength Magnetic Separator Machine High Reliability Mechanical Structure

Large Image :  Good Strength Magnetic Separator Machine High Reliability Mechanical Structure

Product Details:

Place of Origin: China
Brand Name: HK
Certification: ISO CE
Model Number: 1000

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: nude
Delivery Time: 30 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 SET PER YEAR
Detailed Product Description
Shell Diameter: 600-1500mm Shell Length: 1200-3000mm
Magnetic Strength: MT>100 Feeding Size(mm): 0-3
High Light:

wet magnetic separator

,

magnetic drum separator

,

3000mm Magnetic Separator Machine

High Strength And High Reliability Mechanical Structure Magnetic Separator:



      The magnetic separator is a screening device used to remove iron powder in powder granules. Magnetic separator is widely used in resource recovery, wood, mining, kiln, chemical, food and other workshops. It is suitable for wet magnetics of magnetite, pyrrhotite, roasting ore, ilmenite and other materials with a particle size below 3mm. It is also used in the iron removal operation of coal, non-metallic minerals, building materials and other materials. It is one of the most widely used and highly versatile models in the industry.



Work Principle of Magnetic Separator:



    The materials are uniformly fed to the belt. When materials go through the permanent magnetic drum, the non-magnetic and low-magnetic particles will leave the belt surface because of the centrifugal force and gravitation. Meanwhile, strong-magnetic particles are absorbed to the belt by magnetic force and then fall into the magnetic trough when the belt leaving the magnetic pulley.



Application of Magnetic Separator:



1, It is applied in lean iron roughing after the roughing crushing or middling crushingto remove deads, improve grade, and reduce the load of the next procedure.
2, For not fully reductive raw ore of hematite reduction
3, For the ceramic industry to remove iron and improve the quality of ceramic products
4, For other industries needing to remove iron, such as Burning coal, sand casting, refractory material, etc



Structures of Magnetic Separator:



      This magnetic separator is suitable for wet magnetic separation of magnetite, pyrrhotite, roasting ore, ilmenite and other materials with a particle size of 0.1-3mm, and is also used for iron removal of coal, non-metallic ore, building materials and other materials. .

The magnetic system of this machine is made of high-quality ferrite material or compounded with rare-earth magnetic steel. The average magnetic induction intensity of the tube surface is 100 ~ 600mT.



      The magnetic separator has the advantages of simple structure, large processing capacity, convenient operation and easy maintenance. Structural characteristics of magnetic separator: Wet permanent magnet drum magnetic separator is mainly composed of a cylinder, a magnetic system, a tank and a transmission part. The cylinder is welded into a cylinder by 2-3mm stainless steel coils, the end cap is made of cast aluminum, and the cylinder is connected with stainless steel screws. The motor passes the reducer to drive the cylinder for rotary motion. The magnetic system is an open type magnetic system, which is housed in a cylinder.



Technical Data of Magnetic Separator:



Model Shell Diameter (mm) Shell Length (mm) Magnetic Strength Revolving Speed (r/min) Feeding Size(mm) Capacity (t/h) Power (kw)
HK6012 600 1200 MT>100 <35 2-0 10-20 1.5
HK 6018 600 1800 MT>100 <35 2-0 15-30 2.2
HK 7518 750 1800 MT>120 <35 2-0 20-45 2.2
HK 9018 900 1800 MT>130 <35 3-0 40-60 3
HK 9021 900 2100 MT>130 <35 3-0 45-60 3
HK 9024 900 2400 MT>130 <28 3-0 45-70 4
HK1018 1050 1800 MT>135 <20 3-0 50-75 5.5
HK 1021 1050 2100 MT>135 <20 3-0 50-100 5.5
HK1024 1050 2400 MT>135 <20 3-0 60-120 5.5
HK1218 1200 1800 MT>135 <18 3-0 80-140 5.5
HK1224 1200 2400 MT>135 <18 3-0 85-180 7.5
HK1230 1200 3000 MT>135 <18 3-0 100-180 7.5
HK1530 1500 3000 MT>135 <14 3-0 170-280 11
